Growler 3000 Electric

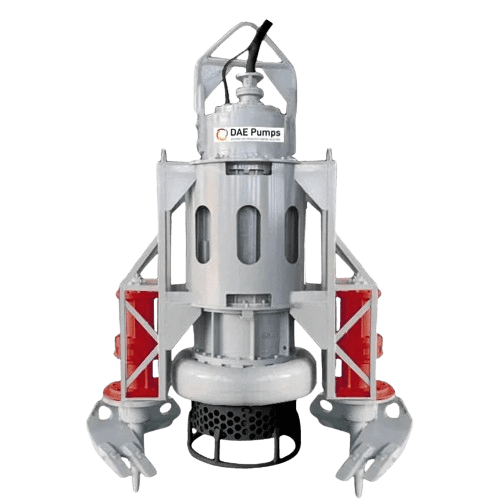

DAE Pumps Growler 3000 Electric Dredge Pump
With its dual side agitators, the DAE Pumps Growler 3000 Electric Dredge Pump is engineered to tackle the most challenging abrasive solids in demanding dredging operations. Outfitted with two industrial-strength agitators and a powerful dredge pump, the Growler 3000 can move up to 1200 cubic meters of material per hour through its 16-inch maximum discharge.
This pump boasts powerful suction capabilities, handling materials up to 3.9 inches in diameter and transporting up to 70% solids by weight without clogging. Various pump size options cater to different operational needs, making the Growler 3000 one of the market’s most versatile and robust dredge pumps, suitable for cable-deployed and excavator-mounted configurations.
The heavy-duty agitators efficiently break up very compact materials, ensuring a continuous feed to the suction pump. The agitator and optional internal knife effectively chop organic materials such as seaweed, grass, and other aquatic weeds, maintaining optimal suction power.
Request a Quote for the Growler 3000 Dredge Pump
Request a Quote for the Growler 3000 Dredge Pump
DAE-Pumps-logo
Experience the unmatched strength and reliability of the DAE Pumps Growler 3000 Electric Dredge Pump. This pump, designed with dual-side agitators for superior material breakdown, is built to last in the harshest dredging environments. Its rugged and durable design can manage the most abrasive solids, moving up to 1200 cubic meters per hour through its 16-inch discharge. Whether in a cable-deployed or excavator-mounted setup, the Growler 3000 offers versatility and reliability that you can count on.
As the official distributor of DAE Pumps in Canada, Pump and Dredge Direct is committed to providing local support and ensuring the availability of the Growler 3000. Contact us today to request a quote and discover how this powerful pump can enhance your dredging operations.
Key Features of the Growler 3000
- Rugged and durable dredge pump design
- Dual agitator heads for efficient material disruption
- Exceptional abrasion resistance
- Available in multiple sizes: 6″, 8″, 10″, 12″, 14″, and 16″
- Capacity to transfer up to 1200 cubic meters per hour
- Capable of pumping up to 70% solids by weight
- Operational depths reaching up to 250m
- Robust motor delivering strong torque and extended operational lifespan
- Interchangeable tooth agitators for adaptability
Specifications
Electric Pump
- Max Capacity: 5280 GPM (1200 m³/h)
- Max Head: 180’ (55m)
- Impeller Diameter / Type: 26” (650mm) / 2 Blade Closed
- Discharge Size: 12” (300mm)
- Solid Handling: 4.8” (120mm)
Motor
- Power: 325 HP (240kW)
- Voltage: 251 GPM (950 l/min)
- Phase / Poles / Frequency: 3 / 8 / 60Hz
- Speed: 890 RPM
- Insulation Class: H
- Power Cable 20m (IEC 60245-4): 2 x H07RN-F 4G95
Materials
- Casing: Spheroidal Cast Iron EN-GJS500-7 (EN 1563)
- Motor Housing: Cast Iron EN-GJL-250 (EN 1561)
- Wear Parts: High Chrome EN-GJN-HV600 (XCr18) (EN 12513)
- Main Shaft: High Tensile Steel 39NiCroMo3 (AISI 9840)
Seals / Lubricant
- Motor Side Seals: 1 Mechanical Seal (Silicon Carbide in Oil Bath)
- Impeller Side Seals: 1 Mechanical Seal (Silicon Carbide in Oil Bath) + 2 Lip Seal (1 BUNA + 1 TPU)
- Oil type: ISO 320
Electric Agitators x2
Motor
- Power: 14.4 HP (10.8 kW)
- Rated Current: 16A
- Rated Voltage: 480V
- Rated Speed: 1750 RPM
- Insulation: Class H
- Power Cable: 20m (IEC 60245-4) H07RN-F 4G10
