Hauler Hydraulic Sand And Slurry Pump
Equipment Overview

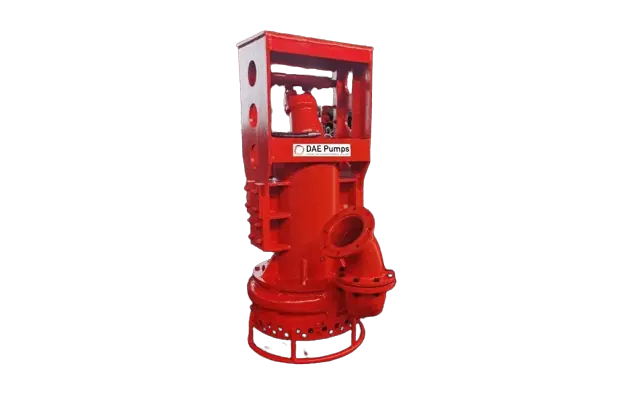

The DAE Pumps Hauler Hydraulic Sand & Slurry Pump is robust and highly efficient, designed to handle solids and challenging materials easily. It can move up to 2000 cubic meters of solids per hour, making it ideal for large-scale dredging operations. The pump features a non-clogging suction design that can handle solids up to 3.9 inches in diameter, transporting materials through a 16-inch discharge with up to 30% solid content. This pump is known for its adaptability and superior performance as part of DAE Pumps’ extensive hydraulic range.
The Hauler Hydraulic Sand & Slurry Pump is not just robust and efficient but also versatile. It is well-suited for a variety of dredging tasks, making it a valuable asset for any operation. It can be deployed via cable or mounted on an excavator, providing flexibility in its use.
The pump also offers customization options, such as an agitator or a water jetting ring, which are perfect for breaking down organic materials like aquatic weeds, ensuring continuous operation and further enhancing its versatility.
Comprehensive Dewatering Pump Solutions
DAE Pumps is not just about individual products, but about comprehensive solutions for dewatering needs. Our pumps are celebrated for their durability and efficiency, and our commitment to meeting diverse needs is evident in our comprehensive range of solutions. The sealed and modular designs of our pumps enhance ease of use and simplify maintenance, ensuring reliable operation and straightforward servicing. This leads to increased productivity and user satisfaction, making DAE Pumps a top choice for diverse dewatering needs.
Key Features of the Hauler Hydraulic Dredge Pump
- Durability and Resistance: Built for high abrasion resistance and a long lifespan.
- Size Variability: Available in sizes ranging from 3 to 16 inches.
- High Capacity: Able to move up to 2000 cubic meters of solids per hour.
- Solid Handling: Efficiently pumps up to 30% solids.
- Operational Depth: Suitable for depths up to 250 meters.
- Powerful Hydraulic Motor: Provides strong torque and longevity.
The Hauler Hydraulic Sand & Slurry Pump is distinguished in the industry for its remarkable capabilities and adaptability, making it an excellent choice for demanding dredging and dewatering projects.
Specifications
- Max Capacity: 2860 GPM (650 m³/h)
- Max Head: 89.5’ (27m)
- Impeller Diameter / Type: 16” (405mm) / 3 Blades Closed
- Discharge Size: 12” (300mm)
- Solid Handling: 3.6” (90mm)
Materials
- Casing: Spheroidal Cast Iron EN-GJS500-7 (EN 1563)
- Motor Housing: Cast Iron EN-GJL-250 (EN 1561)
- Wear Parts: High Chrome EN-GJN-HV600 (XCr18) (EN 12513)
- Main Shaft: High Tensile Steel 39NiCroMo3 (AISI 9840)
Motor
- Motor Displacement: 9.8 cu. Inch (160 cc)
- Max. Oil Flow Rate: 72 GPM (270 l/min)
- Max. Pressure: 4351 PSI (300 bar)
- Power: 185 HP (475 kW)
- Speed: 1450 RPM
Seals / Lubricant
- Motor Side Seals: 2 Lip Seals (BUNA)
- Impeller Side Seals: 5 Lip Seals (3 BUNA + 2PTFE) + 1 V-ring (TPU)
- Oil type: ISO 320
